• SAWO sauna heaters tower Phoenix Round NS
  • SAWO Phoenix Tower

Phoenix NS

» Power range 4,5 – 18,0kW
» Control: Separate
» Stainless tubes hold the stones
» Stone spacer inside to prolong heating elements lifespan
» Floor standing
» Can fit from 85kg to 130kg of stones
» Adjustable legs

» Optional integration collar

Phoenix heater is developed to produce steam from the lowest to the highest part of the sauna, similar to smoke-sauna. Choose from Round, Wall or Corner model depending on your sauna layout. Phoenix heater have suitable kW from small to large saunas (2m³-40m³).

Specifications

Technical Data

Heater ModelkWSauna Room
min (m3) max		Size of heater (mm)

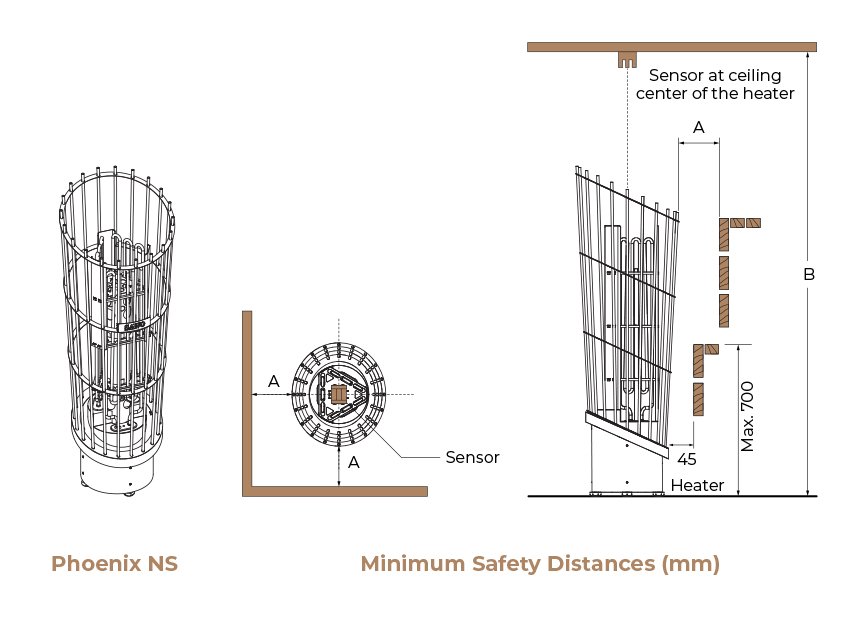

Width Depth Height		Stones (KG)Minimum Safety Distances
A | B
PNX3-45NS4,53 – 6375 – 340 – 1100851001900
PNX3-60NS6,05 – 9375 – 340 – 1100851251900
PNX3-75NS7,57 – 13375 – 340 – 1100851251900
PNX3-90NS9,08 – 14375 – 340 – 1100851501900
PNX6-90NS4,58 – 15525 – 475 – 11751301501900
PNX6-105NS10,59 – 16525 – 475 – 11751301501900
PNX6-120NS12,011 – 18525 – 475 – 11751301502100
PNX6-150NS15,014 – 25525 – 475 – 11751301502100
PNX6-180NS18,018 – 28525 – 475 – 11751301752100

SAWO Phoenix NS Manual



Safety Features

Energy Efficient

Durable Contructions

Efficient Heating

User-Friendly Controls

ACCESSORIES

Sauna Stones
Sauna Stones
(size: 20kg)
HP01 070 Cozy Tank Sauna Humidifier Cylindrical 0.6L
Cozy Tank
(Water volume 0.6L)
