Tower Corner NS

Power rating from 3 to 12kW

Tower Corner NS

» Power range 3,0 – 12,0kW

» Control: Separate
» Sauna Experience: Mild smooth heat, Humid

» Stainless steel casing
» Moving steel rings for replacement of broken stones
» Removable stone spacer, choose between faster heating time and hotter heat or slower, milder heat.
» Adjustable legs

» Optional Heater Guard and Integration Collar

Tower Corner is designed to fit into tight corners, this model maximizes your sauna layout without sacrificing style.

The Tower Corner will ensure a gentle, soothing warmth for a truly relaxing experience.

Suitable for small to large saunas (2m³ – 18m³).

INQUIRE

Specifications

Technical Data

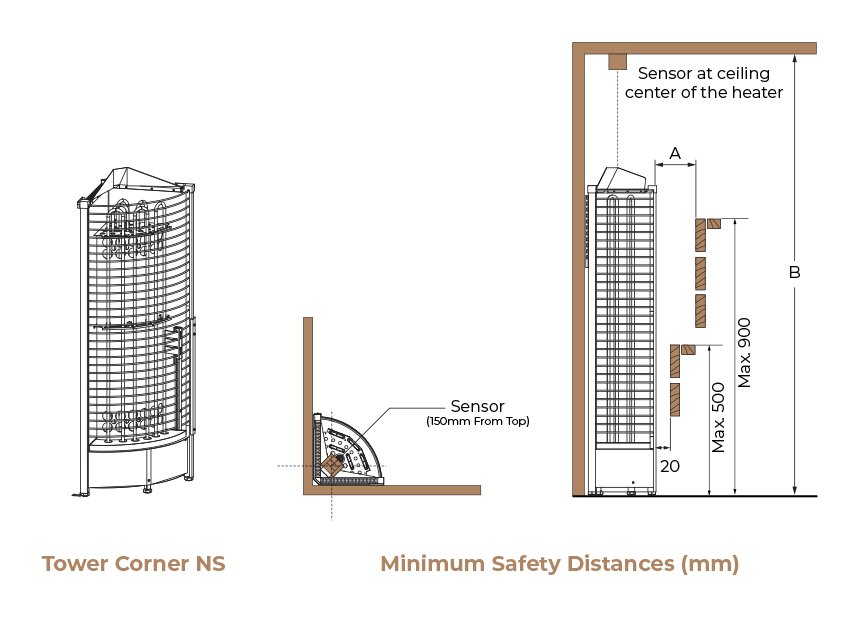

Heater Model	kW	Sauna Room min (m3) max	Size of heater (mm) Width Depth Height	Stones (KG) w/o Stone Spacer	Stones (KG) with Stone Spacer	Minimum Safety Distances A \| B
TH2-30NS-CNR	3,0	2 – 4	300 – 300 – 1380	70	45	100	1900
TH3-35NS-CNR	3,5	3 – 6	300 – 300 – 1380	70	45	100	1900
TH3-45NS-CNR	4,5	3 – 6	300 – 300 – 1380	70	45	100	1900
TH3-60NS-CNR	6,0	5 – 8	300 – 300 – 1380	70	45	100	1900
TH4-60NS-CNR	6,0	5 – 9	355 – 355 – 1380	105	70	100	1900
TH5-80NS-CNR	8,0	7 – 13	355 – 355 – 1380	105	70	100	1900
TH5-90NS-CNR	9,0	8 – 14	355 – 355 – 1380	105	70	100	1900
TH6-80NS-CNR	8,0	7 – 14	415 – 415 – 1380	160	80	100	1900
TH6-90NS-CNR	9,0	8 – 15	415 – 415 – 1380	160	80	100	1900
TH6-105NS-CNR	10,5	9 – 16	415 – 415 – 1380	160	80	100	1900
TH6-120NS-CNR	12,0	11 – 18	415 – 415 – 1380	160	80	100	2100
