Tower Round NS

Power rating from 3 to 24kW

Tower Round NS

» Power range 3,0 – 24,0kW

» Control: Separate
» Sauna Experience: Mild smooth heat, Humid

» Stainless steel casing
» Moving steel rings for replacement of broken stones
» Removable stone spacer, choose between faster heating time and hotter heat or slower, milder heat.
» Adjustable legs
» Optional Heater Guard and Integration Collar

Tower Round is a timelessly elegant heater that will release long-lasting mild, steady and humid heat.

Round model is perfect to be placed in the middle of the sauna or embedded into benches. Suitable for small to extra-large saunas (2m³ – 40m³).

INQUIRE

Specifications

Technical Data

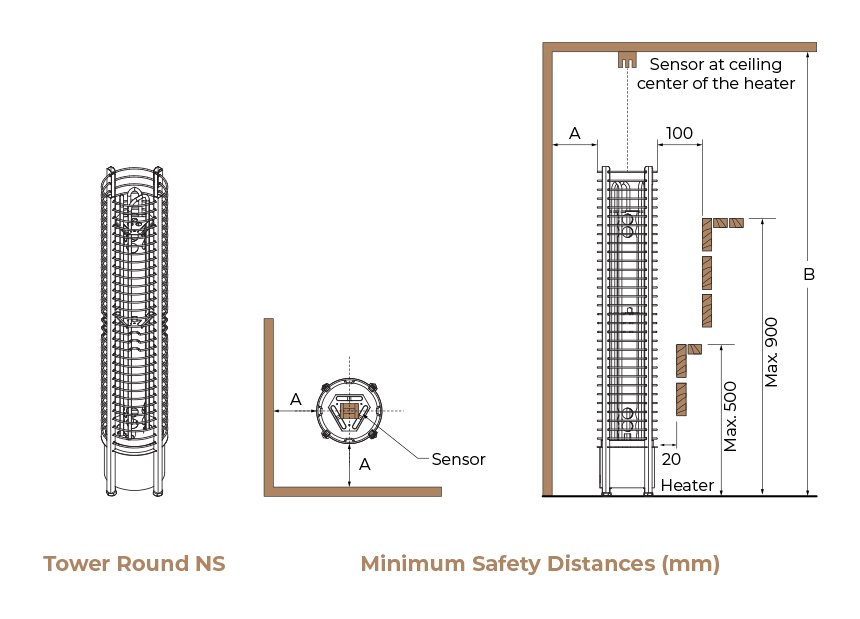

Heater Model	kW	Sauna Room min (m3) max	Size of heater (mm) Width Depth Height	Stones (KG) w/o Stone Spacer	Stones (KG) with Stone Spacer	Minimum Safety Distances A \| B
TH2-30NS	3,0	2 – 4	260 – 260 – 1300	70	60	150	1900
TH3-35NS	3,5	3 – 6	260 – 260 – 1300	70	60	100	1900
TH3-45NS	4,5	3 – 6	260 – 260 – 1300	70	60	100	1900
TH3-60NS	6,0	5 – 8	260 – 260 – 1300	70	60	150	1900
TH4-60NS	6,0	5 – 9	315 – 315 – 1300	105	90	150	1900
TH5-80NS	8,0	8 – 14	315 – 315 – 1300	105	90	100	1900
TH5-90NS	9,0	8 – 14	315 – 315 – 1300	105	90	150	1900
TH6-80NS	8,0	7 – 14	365 – 365 – 1300	160	100	100	1900
TH6-90NS	9,0	8 – 15	365 – 365 – 1300	160	100	100	1900
TH6-105NS	10,5	9 – 16	365 – 365 – 1300	160	100	150	1900
TH6-120NS	12,0	11 – 18	365 – 365 – 1300	160	100	200	2100
TH9-105NS	10,5	10 – 16	450 – 450 – 1300	230	165	150	2100
TH9-120NS	12	11 – 20	450 – 450 – 1300	230	165	150	2100
TH9-150NS	15	14 – 25	450 – 450 – 1300	230	165	200	2100
TH9-180NS	18	18 – 28	450 – 450 – 1300	230	165	200	2100
TH12-150NS	15	15 – 26	545 – 545 – 1300	360	220	200	2300
TH12-180NS	18	18 – 30	545 – 545 – 1300	360	220	200	2300
TH12-210NS	21	22 – 35	545 – 545 – 1300	360	220	200	2300
TH12-240NS	24	24 – 40	545 – 545 – 1300	360	220	200	2300

Resources

SAWO Tower Round NS Manual

Safety Features

Energy Efficient

Durable Contructions

Efficient Heating

User-Friendly Controls

ACCESSORIES

Round Wooden Guard Rail

(Cedar/Aspen)

View

Round Integration Collar

(Cedar/Aspen)

View

Round Integration Collar

(Soapstone)

View

Round Integration Collar

(Stainless)

View

Round Stainless Collar

(Stainless)

View

Cozy Tank

(Water volume 0.6L)

View

Sauna Stones

(size: 32kg)

View

Model
Model	Width	Depth (mm)	Height
TH-GUARD-W2-D \| A	510	270	210
TH-GUARD-W4-D \| A	570	290	200
TH-GUARD-W6-D \| A	625	625	110
TH-GUARD-W9-D \| A	710	375	208
TH-GUARD-W12-D \| A	810	420	220

Model
Model	Width	Depth (mm)	Height
TH-Collar-W2-D \| A	449	187	150
TH-Collar-W4-D \| A	495	200	150
TH-Collar-W6-D \| A	547	215	150
TH-Collar-W9-D \| A	608	233	150
TH-Collar-W12-D \| A	694	258	150

Model
Model	Width	Depth	Height
TH-COLLAR-S2	507	507	45
TH-COLLAR-S4	560	560	45
TH-COLLAR-S6	620	620	45
TH-COLLAR-S9	690	690	45
TH-COLLAR-S12	790	790	45

Model
Model	Width	Depth	Height
TH-COLLAR-ST2	470	470	70
TH-COLLAR-ST4	545	545	55
TH-COLLAR-ST6	665	665	60
TH-COLLAR-ST9	720	720	42
TH-COLLAR-ST12	830	830	70

Model
Model	Width	Depth (mm)	Height
TH-COLLAR-V2-ST4	440	440	120
