Tower Wall NS

» Power range 3,0 – 24,0kW
» Control: Separate
» Sauna Experience: Mild smooth heat, Humid
» Stainless steel casing
» Moving steel rings for replacement of broken stones
» Removable stone spacer, choose between faster heating time and hotter heat or slower, milder heat.
» Adjustable legs
» Optional Heater Guard and Integration Collar

Tower Wall is a timelessly elegant heater that will release long-lasting mild, steady and humid heat.

Wall model will save space on the layout, with still being a show-stopper of the sauna. Suitable for small to extra-large saunas (2m3-40m3), to increase capacity to over 24kW you can always combine 2 Tower Walls back-to-back, which enables to grow power capacity as much as until 48kW.

Specifications

Technical Data

Heater ModelkWSauna Room
min (m3) max		Size of heater (mm)
Width Depth Height		Stones (KG)
w/o Stone Spacer		Stones (KG)

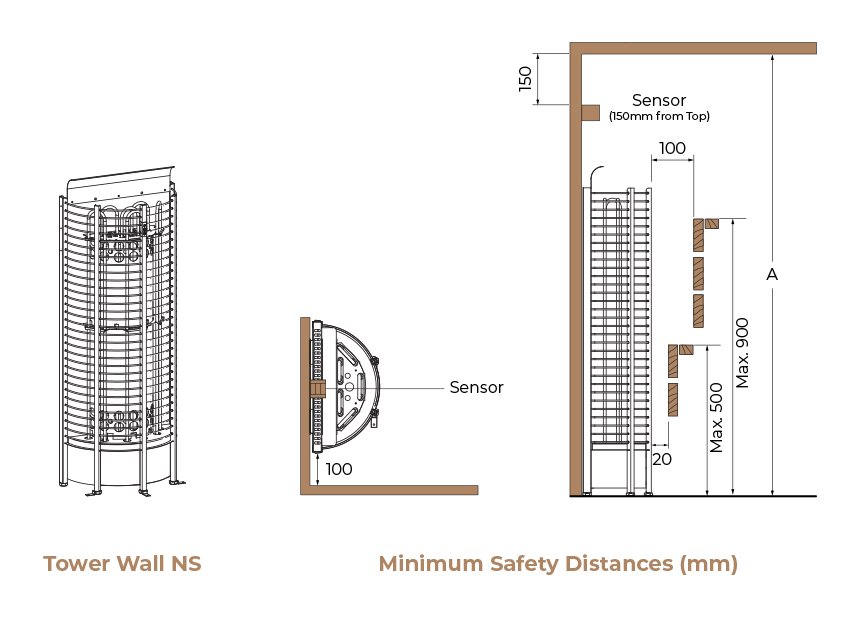

with Stone Spacer		Minimum Safety Distances
A | B
TH2-30NS-WL3,02 – 4385 – 230 – 139580601001900
TH3-35NS-WL3,53 – 6385 – 230 – 139580601001900
TH3-45NS-WL4,53 – 6385 – 230 – 139580601001900
TH3-60NS-WL6,05 – 8385 – 230 – 139580601001900
TH4-60NS-WL6,05 – 9475 – 250 – 1395120901001900
TH5-80NS-WL8,08 – 14475 – 250 – 1395120901001900
TH5-90NS-WL9,08 – 14475 – 250 – 1395120901001900
TH6-80NS-WL8,07 – 14550 – 320 – 13951601001001900
TH6-90NS-WL9,08 – 15550 – 320 – 13951601001001900
TH6-105NS-WL10,59 – 16550 – 320 – 13951601001002100
TH6-120NS-WL12,011 – 18550 – 320 – 13951601001002100
TH9-105NS-WL10,510 – 16650 – 355 – 13951801151002100
TH9-120NS-WL12,011 – 20650 – 355 – 13951801151002100
TH9-150NS-WL15,014 – 25650 – 355 – 13951801151002100
TH9-180NS-WL18,018 – 28650 – 355 – 13951801151002300
TH12-150NS-WL15,015 – 26790 – 425 – 13952501651002300
TH12-180NS-WL18,018 – 30790 – 425 – 13952501651002300
TH12-210NS-WL21,022 – 35790 – 425 – 13952501651002300
TH12-240NS-WL24,024 – 40790 – 425 – 13952501651002300

SAWO Tower Wall NS Manual



Safety Features

Energy Efficient

Durable Contructions

Efficient Heating

User-Friendly Controls

ACCESSORIES

TH GUARD W2 WL D
TH GUARD W2 WL A
Wall Wooden Heater Guard
(Cedar)
TH COLLAR W4 WL D
TH COLLAR W4 WL A
Wall Integration Collar
(Cedar)
TH COLLAR S4 WL
Wall Integration Collar
(Soapstone)
TH COLLAR ST4 WL
TH COLLAR ST4 WL ARI3 Wall Ni2
Wall Integration Collar
(Stainless)
Sauna Stones
Sauna Stones
(size: 20kg)
